Tango F3B/F3F V Tail

DESCRIPTION：

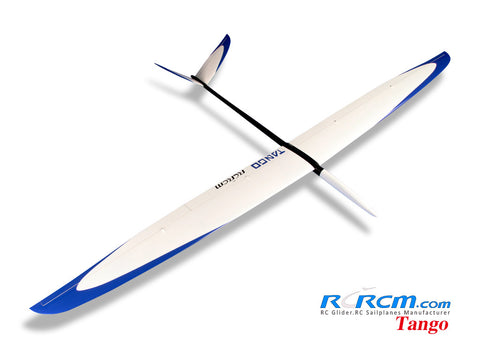

RCRCM 2890mm/2905mm Wingspan F3B/F3F RC Glider -TANGO

Inspired by one of the most beautiful types of musics in the world, Argentine Tango, full of elegance and majesty, represented in this wonderful glider flying with fine lines and versatility to meet all expectations of any pilot. This glider was designed thinking to fly in F3B/F3F competition.

TANGO performed very well in the F3B World Cup in Germany last 2013 with great success. Electric version is also available and We are sure that will be a surprising experience to fly that ship using this kind of configuration…you will feel a rocket in your hands!!

Available in 4 Versions:

Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives good stiffness and torsion stability with lower weight and cost. Highly recommended for sport flying.

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).

Features:

• Tango (motorless version is 2890 wingspan, motor version is 2905mm wingspan)has two blended high performance airfoils in the wings, that allow the pilot to fly high speed and slow when he need it. This advanced design completed with the RCRCM technology, make this glider and excellent machine to fly.
• Able to fly in almost any conditions and equipped with a full house complement of ailerons, rudder, elevator and flaps.
• Tango is a glider to use for competition or just for fun.

Includes:

• RCRCM 2890mm/2905mm Wingspan RC Glider – TANGO
• Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate

SPECIFICATIONS:

Preferences                        Motorless

Wingspan:                          2890mm

Length:                               1450mm

Wing area:                          54.1dm2

Flying Weight:                     N/A

Empty Weight:                    Fiberglass+Carbon Standard Version:1570g
                                            Carbon Version: 1660g

CG:                                     92-97 mm from leading edge

Tow hook setting                NO

Ailerons                              YES

Elevator                              YES

Rudder                               YES

Flaps                                   YES

Required Radio                   No less than 6 channels

Recommend equipment configuration for a motorless version basic configuration

Servos for wings                 KST DS125MG*4

Servos for fuselage             KST DS215MG*2

Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.

Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.

Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.
